Metal Detector Grid Search Mistakes: Fix Them Fast

The first time I ran a proper metal detector grid search, I covered a 50 by 50 foot section of a park and walked away with three clad coins. A friend ran the same section the following weekend with the same detector, same settings and pulled out eight coins plus a 1942 silver quarter.

The difference wasn't luck. I had made every classic grid search mistake without knowing it.

If you're a detectorist trying to maximize your find rate on a known site the problem is almost never your machine. It's almost always the way you're moving across the ground.

The most common metal detector grid search mistakes are inconsistent swing overlap, walking too fast to let the coil process signals and swinging at uneven heights that create dead zones between passes.

Fixing these three issues alone can meaningfully increase your recovery rate on any site without changing a single detector setting.

Below, I'll walk through exactly what goes wrong during a grid search, the real math behind coverage gaps and the four adjustments that will immediately sharpen your results on any site you run.

Why Most Detectorists Get Grid Search Wrong Before They Start

The most persistent myth in the hobby is that covering ground fast equals covering it well.

Most beginners assume that if the coil passed over an area the area got searched. It didn't.

A standard 11 inch search coil has an effective detection width of roughly 8 to 9 inches for small or deep targets not the full coil diameter (Minelab's coil performance documentation, 2023).

That gap between the coil's physical diameter and its actual detection radius is where the majority of finds disappear.

The FMDAC (Federation of Metal Detector and Archaeological Clubs), one of the oldest organized detecting bodies in the US, consistently identifies inadequate swing overlap as the leading reason previously searched sites still produce targets for the next detectorist not ground mineralization, not detector quality, not interference.

This is the starting point for almost all metal detecting tips for beginners that actually improve results: fix what you assume is already correct before adjusting what you can see on the control panel.

💡 Pro Tip: Before your first sweep of any new grid, walk the full boundary and count your intended lanes. If you're not planning at least 25–30% overlap on each pass, you're not covering the ground you're walking it.

What I Actually Found: The Real Numbers

Here's the math that changed how I approach every search.

If you swing a 10 inch coil in a straight lane at standard walking pace with zero overlap, you're missing roughly 2 inches of ground on each side of every pass.

Over a 100 foot lane, that adds up to approximately 16 square feet of unchecked ground per lane. Run 10 lanes across a 100 by 100 foot grid and you've left 160 square feet completely uncovered.

Now add one of the most overlooked metal detector swing technique errors: the "fish tail" arc, where the coil lifts at the outer edges of each sweep instead of staying level to the ground.

That single habit creates a dead zone at the margins of every swing. Detectorists who fish tail their stroke miss an estimated 10 to 15 percent of the area they believe they've covered (Kellyco Metal Detectors, technical guides, 2022).

Coverage Gap Summary by Mistake Type

Use the SpeedCalcs Metal Detector Grid Search Calculator to enter your coil size, desired overlap percentage and grid dimensions to see exactly how many lanes you need to cover a site without gaps before you take a single step.

The Coverage Gap Nobody Tells Detectorists About

The most frustrating metal detecting search patterns mistake isn't visible in the field it happens at normal walking speed.

A detector coil doesn't process signals instantaneously. Most mid range machines have a target recovery time of 100 to 300 milliseconds per signal depending on sensitivity settings and soil conditions.

At a standard walking pace of around 3 miles per hour, your coil is traveling approximately 4.4 feet per second.

In a 300 millisecond recovery window, the coil moves over 1.3 feet. Any target within that window after a previous signal gets masked processed right over without a tone.

This is how high trash sites produce almost no audio output: the discrimination circuit is still logging the last bottle cap while the next target passes underneath untouched.

Gary Drayton, the well known metal detecting specialist recognized from the History Channel's The Curse of Oak Island, has demonstrated repeatedly in hobbyist community sessions that slowing down on a previously worked site recovers targets that earlier passes missed not because of better equipment but because a slower sweep gives the machine's recovery circuit time to reset between signals. It's the most documented and least practiced technique in the hobby.

📝 Note: Signal masking is especially aggressive in discrimination mode. If you're on a known productive site and getting sparse signals, switch to all metal mode on a small 10 foot test grid and compare the signal density. The contrast is often striking.

The consequence of walking too fast compounds over time. Once you've run a grid at pace and mentally flagged the location as worked, you're unlikely to return.

One poorly executed metal detecting search pattern can permanently write off a site that still holds depth.

What You Should Do Differently

Getting how to grid search with a metal detector right comes down to four specific changes not general advice to "slow down and be careful."

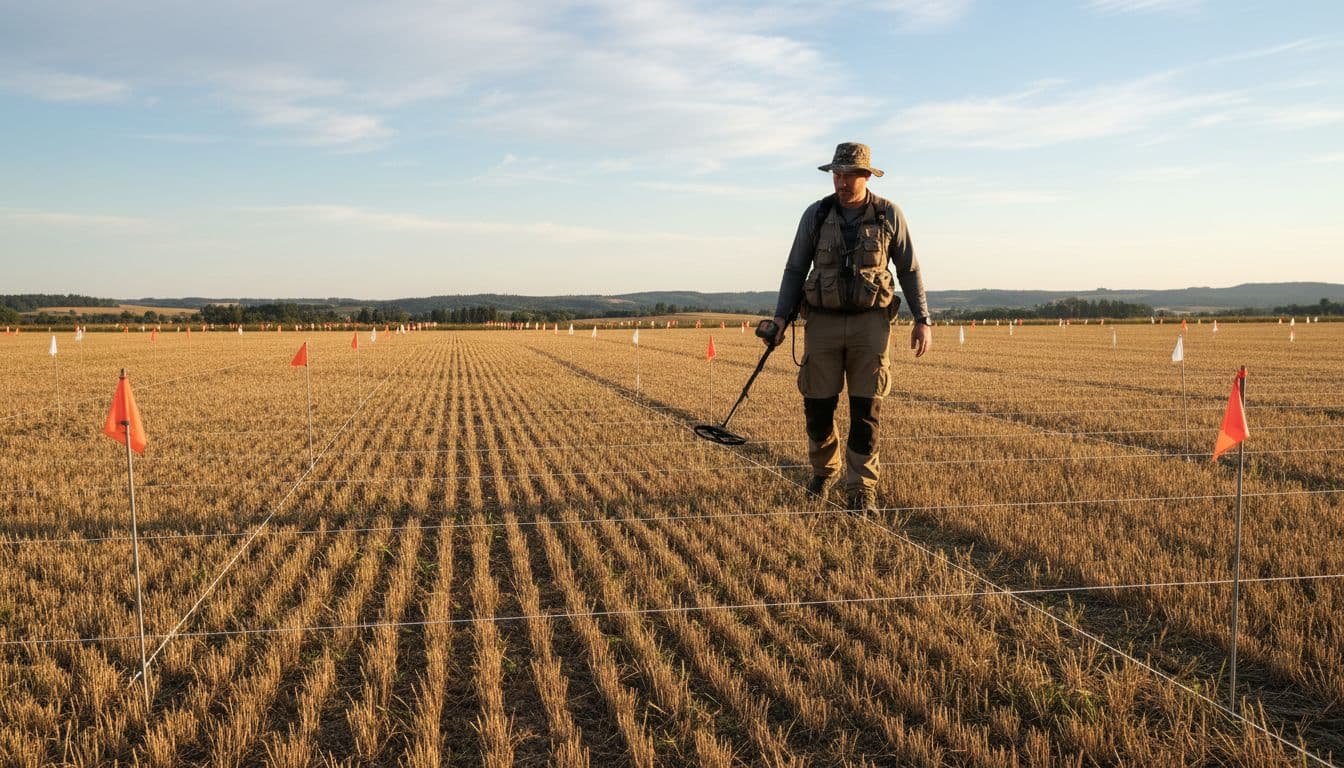

1. Set your lane width before you start, not while you're walking.

Measure and stake a lane width equal to 70% of your coil diameter not 100%. For a 10 inch coil that's a 7 inch effective lane width. Use survey flags, a cord reel or a paracord guide line to mark each pass before you swing it.

This eliminates mid sweep guessing and produces a genuinely repeatable metal detecting search pattern across the entire site.

2. Calibrate your pace to the coil's recovery speed, not your natural stride.

A pace of 1.5 to 2 miles per hour is the reliable upper limit for most mid range machines. Time yourself for 60 seconds at your intended pace before entering the grid. If you cover more than 175 feet in that minute, you're moving too fast for the machine to keep up.

3. Fix the fish tail by moving from the shoulder, not the wrist.

The fish tail arc is a wrist habit. Locking the elbow and initiating the swing from the shoulder joint naturally keeps the coil at a consistent 1 to 2 inch height through the full sweep width.

Practice 20 stationary swings before entering the grid to build the muscle memory before targets are at stake.

4. Run a cross-grid on any site you consider productive.

After completing a standard north south pass set, rotate 90 degrees and run the same pattern east west.

This cross hatching approach is the most reliable method for eliminating the signal masking created by the first pass.

It doubles your time on site but on any location you believe has remaining depth, the return rate justifies the extra session.

Key Takeaways

• The most common metal detector grid search mistakes aren't about detector settings they're about movement across the ground.
• A coil's effective detection width is narrower than its physical diameter; zero pass overlap means 15–20% of your grid goes unchecked.
• Walking faster than your detector's recovery speed causes signal masking the machine misses the next target while still processing the previous one.
• The fish tail swing arc is a wrist habit that eliminates coverage at the outer edge of every sweep; switching to a shoulder driven stroke removes it immediately.
• A cross grid (north south pass, then east west) is the single highest-return pattern change available for sites you consider worked but productive.

When you understand what's actually going wrong during a grid search, the metal detector grid search mistakes that once cost you finds become preventable before you swing a single pass.

Consistent overlap, matched pace and a level stroke are the three variables that separate detectorists who keep finding targets on "hunted out" ground from those who write it off after one mediocre session. Fix these first. The detector settings conversation comes after.

Frequently Asked Questions

Why is my metal detector giving false readings during a grid search?

False readings during a grid search are most commonly caused by ground mineralization changes, electromagnetic interference from power lines or other detectors or inconsistent coil height.

Soil mineralization levels vary significantly by region and affect how electromagnetic signals travel through the ground, which is why a fresh ground balance calibration at each new lane matters more on mineral rich sites.

Moving the coil even half an inch higher mid swing can generate a phantom signal in highly mineralized soil. Running a manual ground balance calibration at the start of each lane not just at the start of the session reduces this significantly.

What is the most common cause of false alarms when metal detecting?

The most common cause is iron masking, where a large ferrous object like a nail or bottle cap produces a signal that overlaps the response of a nearby non-ferrous target, creating a false composite read.

This is especially prevalent on high trash agricultural and park sites. Slowing your pace and running a small all metal test strip helps isolate genuine targets from interference patterns before committing to a full grid.

What frequency is best to find gold while grid searching?

Higher operating frequencies typically 14 kHz and above are more sensitive to small gold targets because gold has low electrical conductivity and responds better to shorter wavelengths.

Most machines optimized for gold run between 18 and 45 kHz. For grid searching a known gold bearing area, a higher frequency machine paired with manual ground balance will give you better depth on small nuggets and thin jewelry than a general purpose detector running a lower frequency.

Do you have to tell anyone if you find something while metal detecting?

In the United States the requirement depends on what you find and where you find it. Discoveries made on federal land that qualify as archaeological resources under the Archaeological Resources Protection Act (ARPA) must be reported.

On private land, your obligation depends on your agreement with the landowner always clarify this in writing before searching.

In the UK the Portable Antiquities Scheme asks detectorists to voluntarily record all finds and anything meeting the legal definition of Treasure must be reported within 14 days under the Treasure Act 1996.

How do I know if I'm walking at the right pace for my detector?

Check your detector's specification sheet for its target recovery speed, listed in milliseconds. A 200ms recovery speed means the machine can cleanly process five targets per second.

At a walking pace of 2 mph (approximately 2.9 feet per second), consecutive targets need to be at least 7 inches apart for both to register independently.

On high trash sites where targets cluster tighter than that, drop to 1 mph or less and treat any increase in signal density as confirmation the slower pace is working.
